Winder
Why you should buy the
Winder
With its intelligent speed control, our winding machine ensures precise and perfectly wound filament for your production.
As soon as our intelligent system detects that there is no longer any tension on the filament, it automatically adjusts the speed. This makes the Winder easy to use and compatible with almost any filament Extruder.
If you want to produce your own filament, our Winder is Winder perfect machine for you.

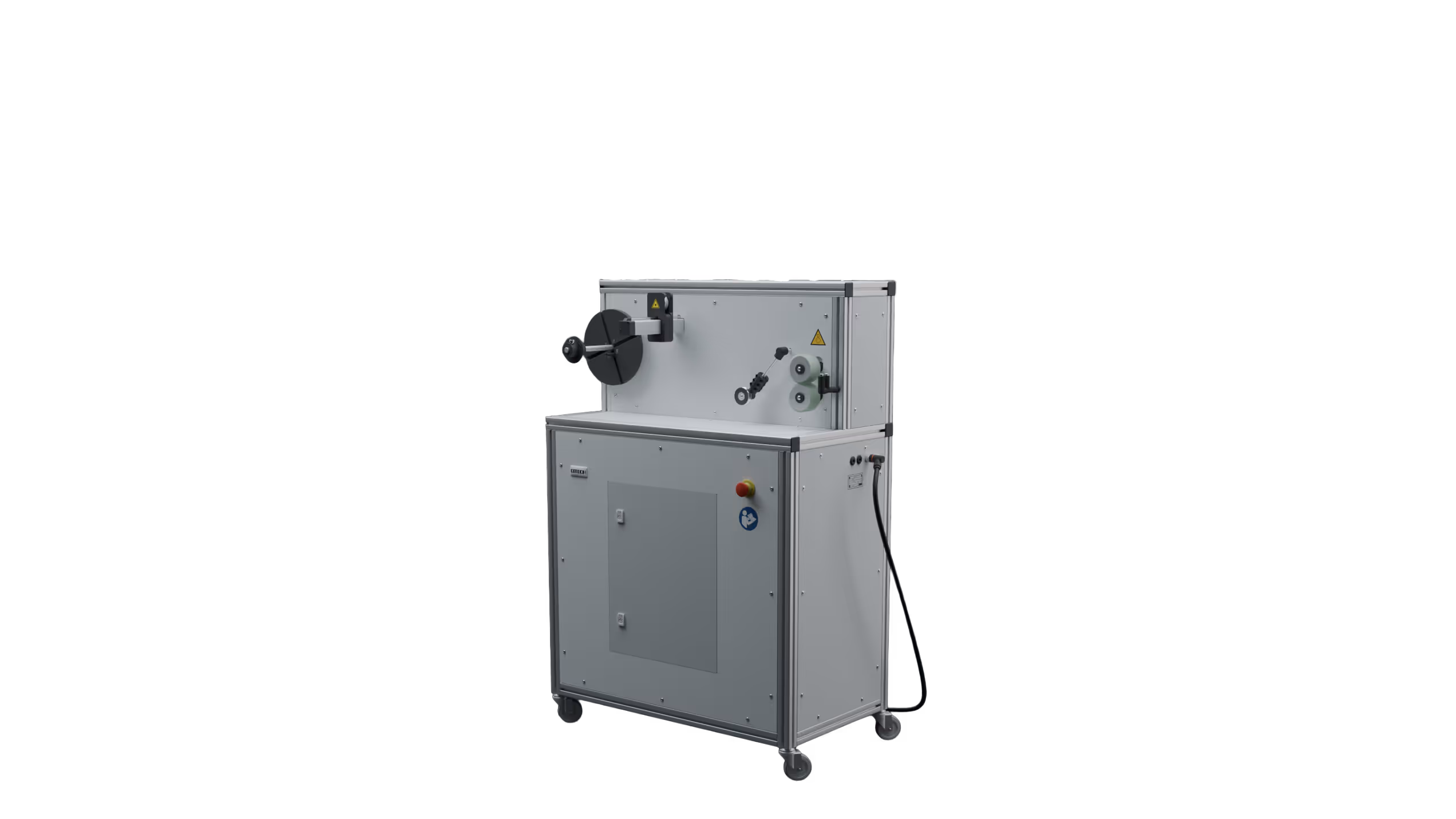

The QiTech Winder a machine that allows you Extruder either Extruder filament directly from the Extruder or rewind spool from one spool to another.
It consists of a pull unit, a filament guide, and the winding spindle.
By adjusting the pull speed, you can adjust the filament’s thickness while it’s still hot. Finally, the filament guide ensures even distribution on the spool.
Monitor, control, and synchronize your Winder the Extruder and the QiTech —all in one centralized, easy-to-use system. QiTech runs on a Linux-based industrial touch panel and automatically detects and synchronizes all connected machines. For example, you can have the winding speed adjusted based on the measured diameter. And for everyday use, there are physical hardware buttons right on the device so you don’t have to look at the display for every step.
Our complete control software, including documentation and schematics, is openly available on GitHub. This allows you to clearly see what’s going on under the hood and, if needed, even fork the code and adapt it to your own processes.
What Winder Our Winder
Puller
The puller is the first component to grip the filament. With its spring-loaded silicone rollers, it adapts to any filament thickness and grips with such a strong hold that even a snow groomer would be jealous. Stainless steel ball bearings and a powerful Nema stepper motor ensure smooth operation.
The mechanics have been completely simplified: changing spools and threading filament is now significantly faster and effortless. And the puller takes the lead—you simply enter the desired pull speed (in m/min), and the machine handles the rest. The spool axis and traverse adjust automatically and keep in sync.
Filament distributor
The "F" in "Filament Guidance" stands for precision. With breathtaking accuracy, our integrated filament distributor moves step by step to the right and left, across the entire width of the spool.
This ensures Winder winding and makes threading a breeze.
Spool Axis
The spool axis is the heart of the winder—and now more flexible than ever. Thanks to tapered mounts and a sliding drive pin, virtually all standard spools can be clamped in place, regardless of differences in drive holes or spool diameters.
The flexible turntable spool centers the spool and secures it firmly on both sides. The spool axis is driven by a motor that, in conjunction with the software, precisely controls its interaction with the puller and filament distributor—ensuring that every layer is positioned exactly as it should be.
Adaptive Speed
Winder QiTech speak the same language—and are in constant communication. If the QiTech detects that the filament is getting too thick, it immediately notifies the puller. If the filament is too thick, the puller pulls faster; if it’s too thin, it slows down. Sounds simple. But there’s a lot of brainpower behind it.
After all, there are several meters of cooling path between the puller and the laser. If you make corrections blindly, you’ll overcompensate and end up with filament that’s alternately much too thick and much too thin.
You can determine how aggressively or conservatively the control system intervenes by adjusting a few parameters in the QiTech software: The result: consistent tolerances, less scrap, and a system that’s fully under control.
Laser
With its built-in laser, the Winder can be spool to fit any spool Winder —no additional attachments required.
The laser is now permanently installed in the filament distributor. To calibrate it, simply move the distributor to the left and right edges of the spool—the laser dot will show you exactly where you are. The spool width is automatically entered into the software.
That’s it. Once set up, the Winder winds Winder from edge to edge.
Rethought from the ground up
Professional industrial connectors instead of in-house USB designs — more reliable and significantly easier to maintain
New crossbar with built-in laser for smart filament guidance and easy calibration to your spools
Physical buttons for Start, Stop, Calibrate, and Emergency Stop for easy operation
Simplified Puller — Loading filament and changing spools is now much faster
Smart software that thinks for itself
Central touchscreen display for controlling all connected QiTech
All you have to do is set the take-up speed; the spool speed adjusts automatically via the load arm
Automatic stopping of the winding process after the desired number of meters
Reverse mode for easy unwinding of spools
Can be paired with the QiTech for automatic speed adjustment based on the measured diameter
Do you need more than theWinder? No problem. We’ve also developed an XL Winder for industrial applications such as cables and hoses—featuring a reinforced 20-mm stainless steel shaft, dual bearings, and speeds of up to 50 m/min. Reels weighing up to 10 kg are standard, but heavier ones are available upon request. And for winding materials, we’ve also developed a special winder with an actively braked side for precise pre-tensioning and a driven side.
If you have even more specific requests, just get in touch with us!
Contact us for a quote!
You can reach Milan at the number below via Whats-App or SMS. Of course you can also simply contact us by e-mail. Just as you like :)
We deliver our filament line personally to you, help with the set-up and do a test run on site together with the responsible persons!
